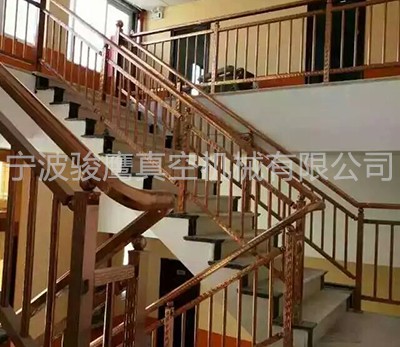

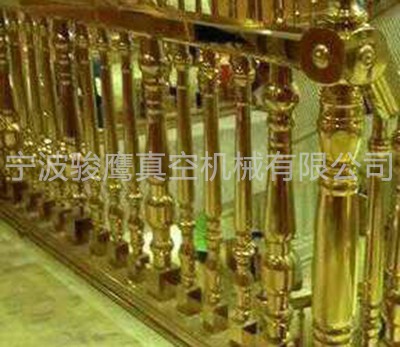

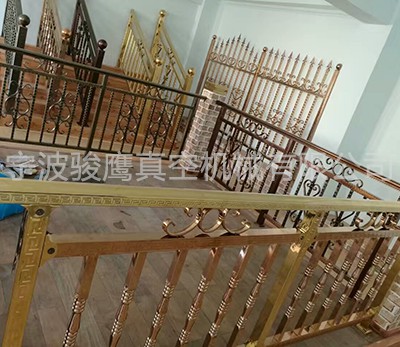

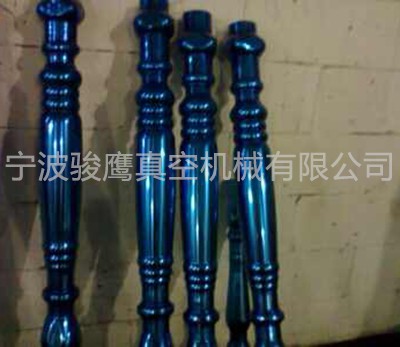

Product Description: High-vacuum multi-arc ion coating machine is mainly used for metallized decorative film and colorful film on the surface of plastic, ceramic, glass and metal products. The electroplating process is simple, mature, and free from environmental pollution. It is widely used and is an ideal vacuum coating equipment to replace traditional wet water plating.

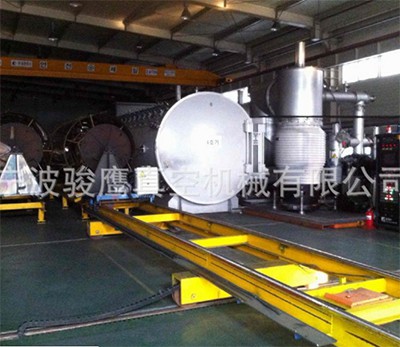

Product Name: JYD series horizontal multi-arc ion coating machine
Product Description: High-vacuum multi-arc ion coating machine is mainly used for metallized decorative film and colorful film on the surface of plastic, ceramic, glass and metal products. The electroplating process is simple, mature, and free from environmental pollution. It is widely used and is an ideal vacuum coating equipment to replace traditional wet water plating.
basic configuration:
1. The vacuum chamber is made of high quality carbon steel, the effective size of the vacuum chamber is Φ1600~Φ2000mm, and the length is 2000mm;
2. The vacuum system adopts domestic famous brand oil diffusion pump, Roots pump and mechanical pump;
3. The color of the plating can be switched freely, and the vacuum coating can be fully controlled.

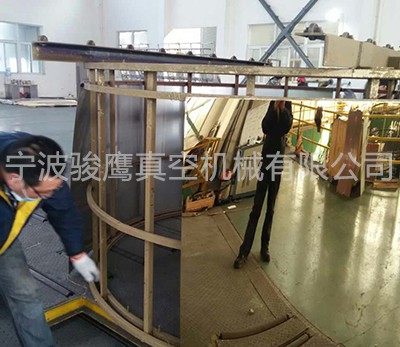

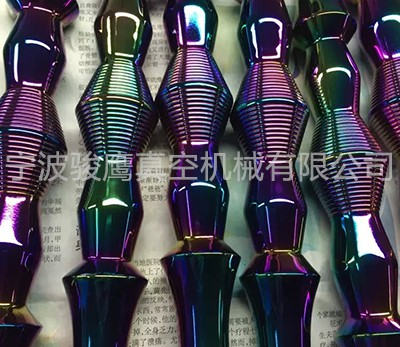

4. Two sets of workpiece racks with gold-plated silver and seven-color plating can be arbitrarily selected;
5. PLC+ touch screen control, which can realize automatic control of vacuuming and coating, and automatically record process parameters.
Technical Parameters:
| model | JYD-1000 | JYD-1200 | JYD-1400 | JYD-1600 | JYD-1800 |
| Coating indoor size (mm) | Φ1000 x 1200 | Φ1200 x 1500 | Φ1400 x 1800 | Φ1600 x 2000 | Φ1800 x 2200 |
| Vacuum performance | The ultimate vacuum is 3X10-3Pa, and the vacuum is vacant from the atmosphere to 5X10-2Pa less than 8 minutes. | ||||
| Power supply requirements | 3-phase 4-wire 380V±10%, 50Hz, nominal power 80KVA, cathode sputtering source power 3-5KVA | ||||
| Compressed air requirements | Pressure 0.5-0.6Mpa, dry, clean | ||||
| Cooling water requirement | Water temperature ≤25°C, pressure 0.4-0.6Mpa, water quality is similar to urban tap water, consumption 2-6T/H | ||||
| Equipment size (m) | 3.2 X 4.2 | 4.2 X 5.2 | |||
| Total weight (Kg) | 4500 | 5000 | 6800 | 7000 | 7600 |
