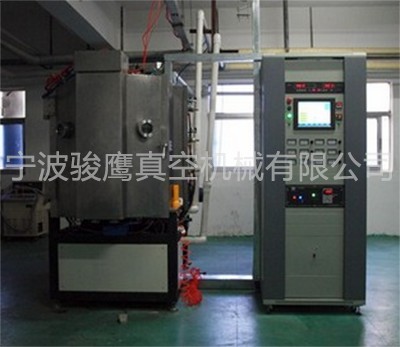

Product Name: JYD Series Multi-Arc Ion Coating Machine

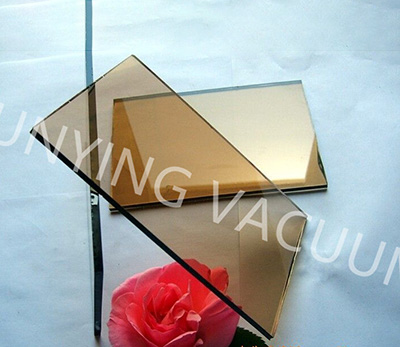

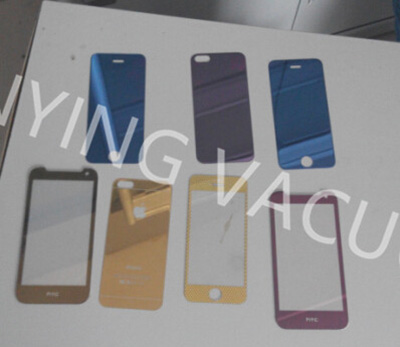

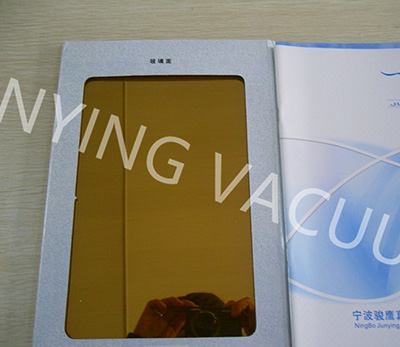

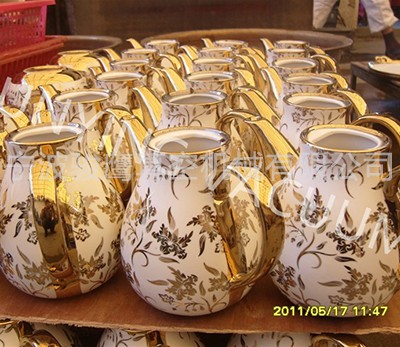

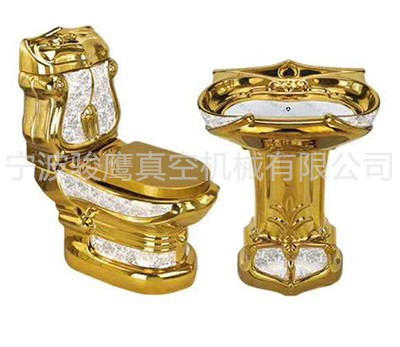

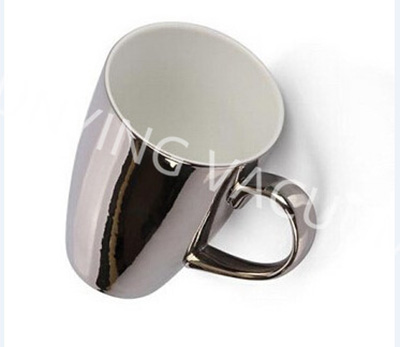

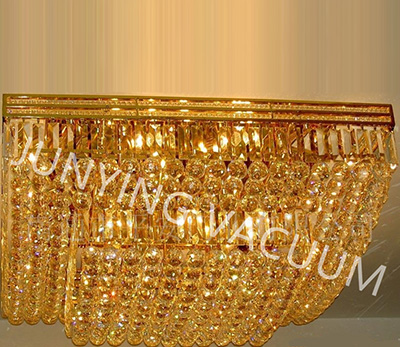

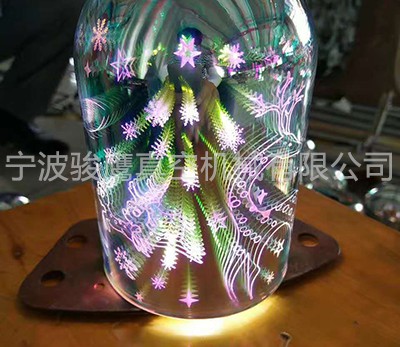

Product Description: It is suitable for the coating of various hard metal films, metal compound films and decorative films on the surface of metals, ceramics and glass. It has the characteristics of fast pumping speed, stable vacuum, large loading capacity and uniform coating. Widely used in the surface treatment of watches, glasses, information products, tools, molds, hardware, glass, ceramics, building materials and other industries. It is ideal for plating IP imitation gold, IPCr, IP light gun, IP brown, IP rose, champagne gold, dry color and other layers. This machine does not pollute the environment. The coating layer is non-toxic and harmless to the human body. It is an ideal equipment to solve the environmental pollution problem of water electroplating plants and replace the traditional water plating gold plating and chrome plating.
Product details:
main feature:
1. Configure the new arc target and power supply, the arcing voltage is low, the arc spot is stable, the arc is not easy to run, the current is low, and the ion particles are small.
2. the film quality is outstanding, the color is stable and uniform.
3. the electronic control system sets the circuit overload, water, air and sound and light alarm device.
4. The touch screen controls all operations, displaying detailed parameters in real time, and can control the entire production process manually or fully automatically.
basic configuration:

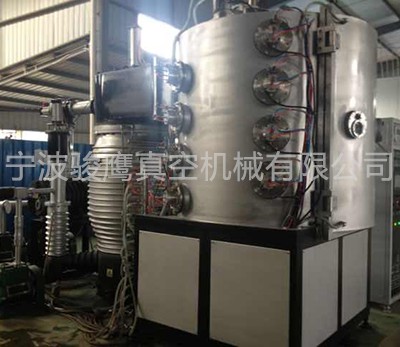

1. Vacuum chamber vertical single door structure, made of 304 stainless steel, outer disk cooling water pipe, effective diameter of vacuum chamber from Φ1400mm~Φ2000mm;
2. The vacuum system consists of a mechanical pump, a Roots pump, and a diffusion pump;
3. The coating system uses 10-28 hot cathode arcs, or 2-4 plane arcs or column arcs;
4. High power pulse bias power supply;
5. the inflation system uses domestic or imported gas mass flow meter, gas flow control (display) instrument;
6. the electronic control system sets the circuit overload, water, air and sound and light alarm device;
7. Control system (touch screen + PLC), display detailed parameters in real time, fully control the entire production process, and automatically store process parameters.
Technical Parameters:
