Product Name: JY-JR Series Winding Coating Machine

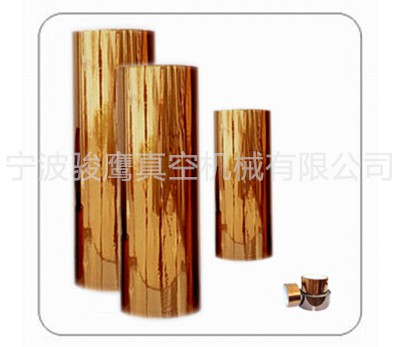

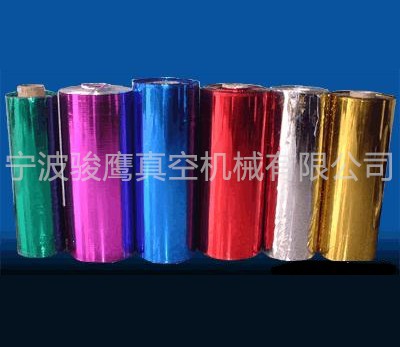

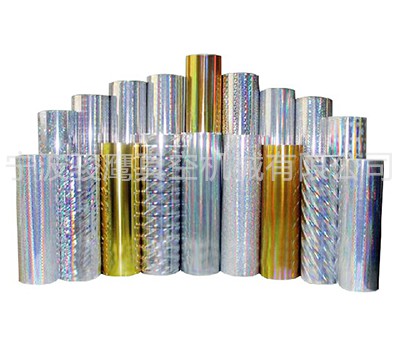

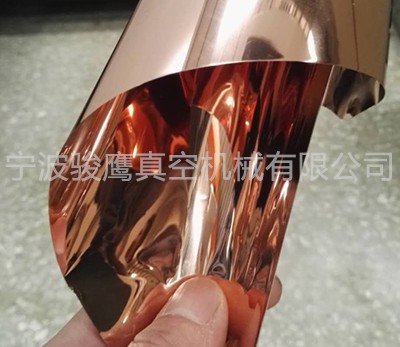

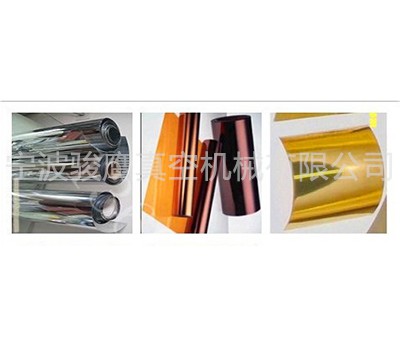

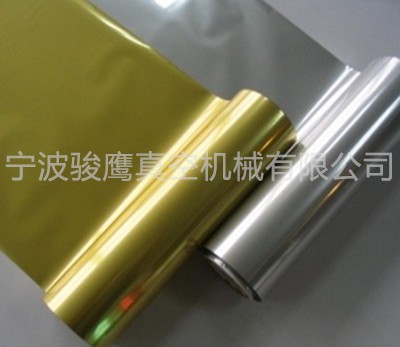

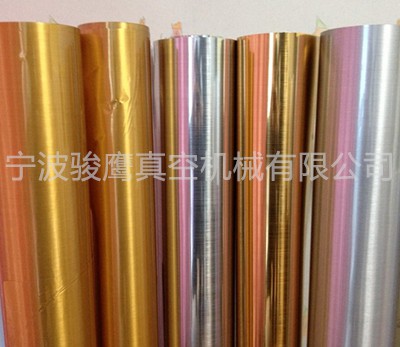

Product Description: Evaporation and magnetron series winding coating equipment is mainly used for plating metal film on the surface of strip materials such as plastic, cloth, paper and metal foil. Products are widely used in packaging, printing, anti-counterfeiting, textile, electronics industry and other fields. This series of equipment has the characteristics of stable operation, flat coating and retraction, uniform film layer, short production cycle, low energy consumption, convenient operation and maintenance, and stable performance.
Product details:
main feature:
1. The roll-rolling system adopts high-precision tributary or AC frequency conversion speed regulation, which has the characteristics of stable operation, high speed, no scratch on the original coil, no wrinkle, and neat end face.
2. The tension control adopts the imported digital tension control system, which has the characteristics of constant tension, constant linear velocity and fast action;
3. Each group of wire feeding is independently controlled by the microcomputer motor, which can be adjusted by total or individual speed, and has speed display;
4, the vacuum system is well-equipped, the pumping speed is fast, using PLC control;
5, equipped with high-power power supply, high coating efficiency, uniform film uniformity.
basic configuration:

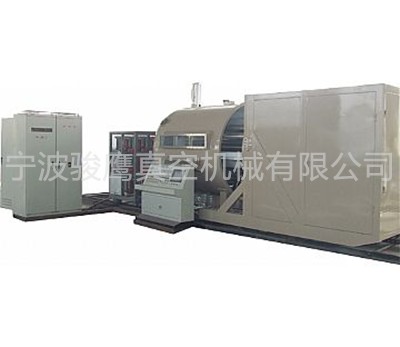

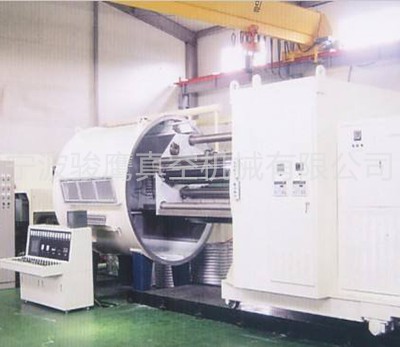

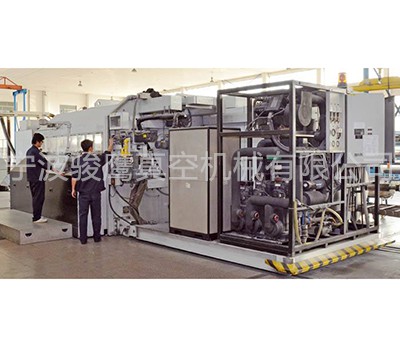

The equipment is mainly composed of a vacuum pumping system, a vacuum chamber, a substrate winding system, an aluminum evaporation system, an electric control cabinet, and an evaporation operation console.
1. The vacuum chamber is a horizontal cylindrical shape, made of 304 stainless steel, and the vacuum chamber is Φ1000~1400mm;
2. 1 to 2 sets of vacuum system, Roots pump, mechanical pump, etc., using pneumatic and solenoid valves;
3. The winding system uses 6 to 10 sets of rollers, and the winding roller, unwinding roller and water cooling roller are each driven by one motor;
4. Coating system can choose steaming wire coating system or magnetron sputtering coating system according to the product. The wire feeding mechanism contains crucibles, electrodes, water cooling, wire feeders, power supplies, and the like. Magnetron sputtering can be equipped with 1-4 planar targets and sputtering power supplies;
5. The vacuum assisted pumping system is equipped with a fast cycle low temperature water vapor trap.
