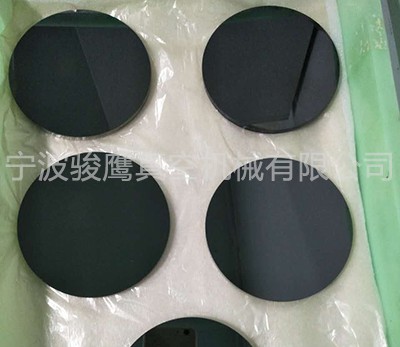

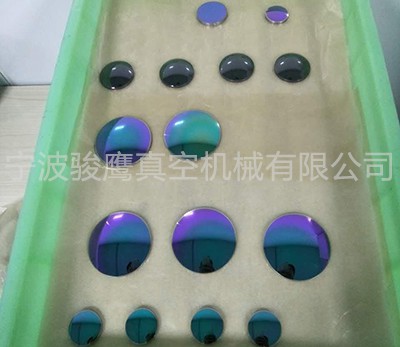

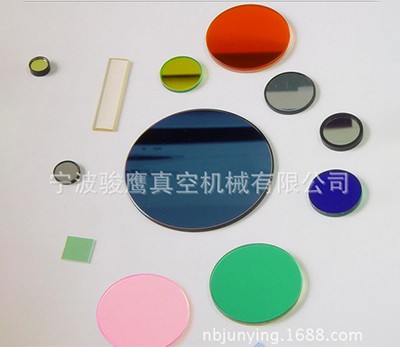

Product Description: Optical special coating machine is designed for telescopes, rearview mirrors, spectacle lenses, etc. It can be coated with aluminum or nickel, copper, chrome, stainless steel and other metals or alloys on the surface of glass lenses. Divided into electronic ion beam and medium frequency magnetron sputtering (lens) two series models.
Product Description: Optical special coating machine is designed for telescopes, rearview mirrors, spectacle lenses, etc. It can be coated with aluminum or nickel, copper, chrome, stainless steel and other metals or alloys on the surface of glass lenses. Divided into electronic ion beam and medium frequency magnetron sputtering (lens) two series models.
Main feature:
The structure is simple and reasonable, the installation is convenient, the production efficiency is high, the floor space is small, and the operation is simple.
Main configuration:

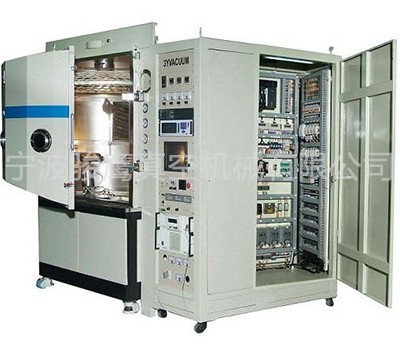

1. The vertical box structure is adopted, and the shell is made of carbon steel;

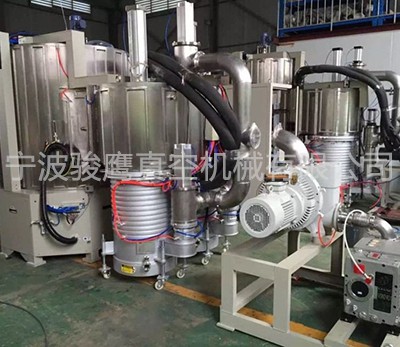

2. The vacuum system uses a diffusion pump, a Roots pump, and a mechanical pumping system;
3. Using a resistor evaporation system or a planar moving target magnetron sputtering system;
4. touch screen automatic control system
Specifications, technical parameters:
| Optical coating machine main technical parameters | ||||||
| Performance | JYG-600 | JYG-800 | JYGG-1000 | JYG-1300 | JYG-1350 | |
| Vacuum chamber size | Φ600X750 | Φ800X900 | Φ1000X1300 | Φ1300X1350 | Φ1350X1500 | |
| Structure type | Vertical | |||||

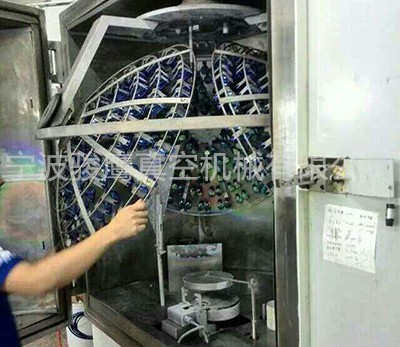

| Workpiece frame structure | Spherical arch | Spherical arch, one of the planets | ||||
| Fixture speed Transfer / minute | 0-45R / min adjustable | |||||
| Baking temperature °C | Adjustable temperature up to 300 °C, heating element tubular heater or bromine tungsten lamp | |||||
| Resistance evaporation source | 2 groups Each group 5KW | 2 groups Each group 2KW | ||||
| Electron beam evaporation source | E-type electron gun; beam deflection angle 270o, power 6KW | E-type electron gun; beam deflection angle 270o, power 8KW | ||||
| Ion bombardment | DC voltage 3KV, power 0.6KW, rod cathode | |||||
| Optical film thickness monitoring system | Film thickness controller MKG-500 or GMHK9704, color meter: WDG-30 grating monochromator | |||||
| Inflatable system | Automatic pressure controller | |||||
| Vacuum system (can be configured according to user requirements) | 2X-30 rotary vane pump KT-400 diffusion pump or F-250 turbomolecular pump |
2X-70 rotary vane pump 2X-4 rotary vane pump KT-500 diffusion pump or F-400 turbomolecular pump |
2X-70 rotary vane pump 2X-8 rotary vane pump KT-630 diffusion pump ZJ-300 Luojing pump |
2X-70 rotary vane pump 2X-8 rotary vane pump KT-630 diffusion pump ZJ-600 Luojing pump |
2X-70 rotary vane pump 2X-15 rotary vane pump KT-630 diffusion pump ZJ-600 Luojing pump |
|
| Ultimate pressure Pa |
≤3X10-4
|
|||||
| Restore vacuum time (no load, pumped from the atmosphere to 5X10-3Pa) | ≤15 minutes | |||||
