Device Description:
JYD-2325PVD ion series high vacuum coating machine: mainly used for tile, porcelain, daily ceramic products (such as tableware, stationery), craft ceramics (such as vases, figures, ornamental furnishings) plasma coating.
This series of equipment is mainly configured as a cathode arc evaporation source, and also has a bias power supply and a magnetron sputtering target.

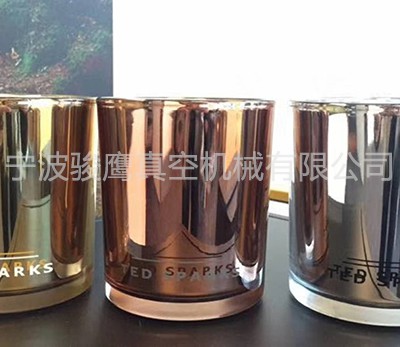

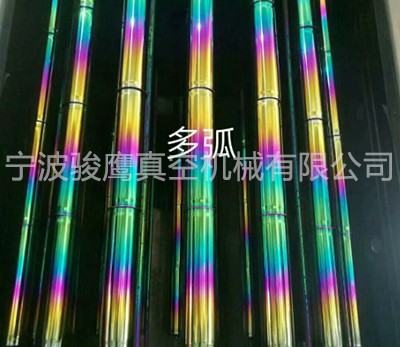

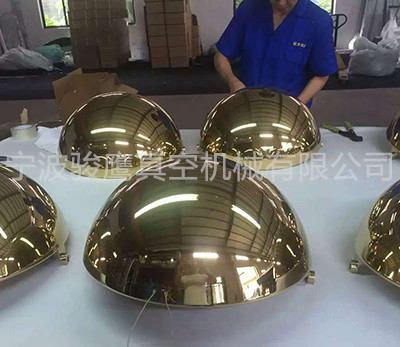

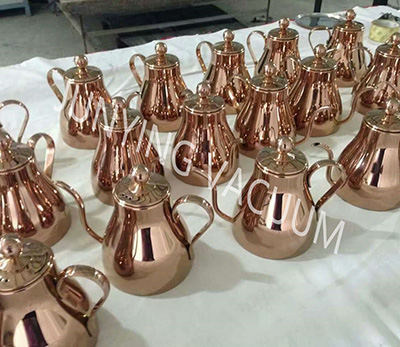

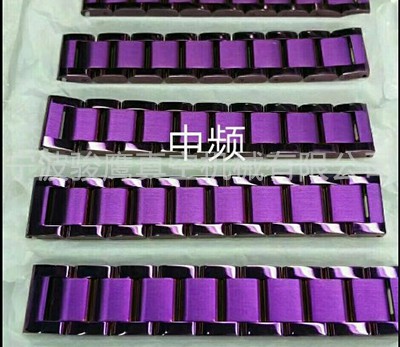

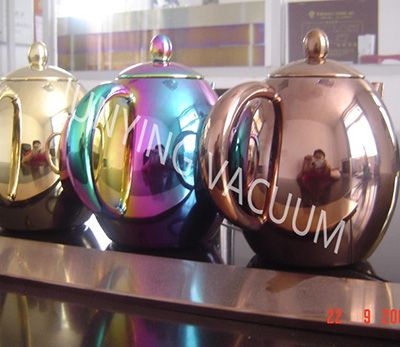

Features: With powerful pumping system, fast pumping, large load capacity, high production capacity and low production cost. It can produce imitation gold, rose gold, silver white, black and other film layers; using decal paper and coating water-soluble paint occlusion technology can get a variety of color patterns;
The surface is coated with a metallized decorative film, titanium gold, zirconium gold, and a colorful oxide film.
The electroplating process is simple, mature, and free from environmental pollution. It is widely used and is an ideal vacuum coating equipment to replace traditional wet water plating.
basic configuration:

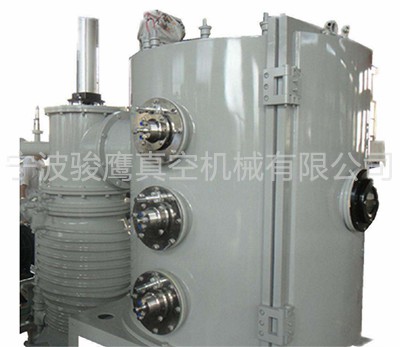

1. The vacuum chamber is made of high quality carbon steel, and the effective size of the vacuum chamber is Φ1800mm~Φ2300mm;

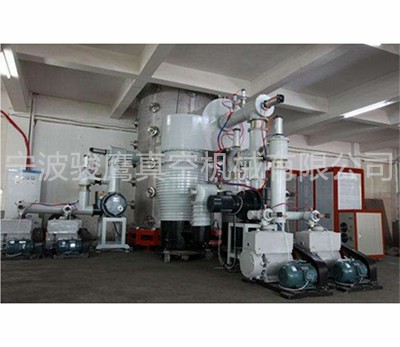

2. The vacuum system adopts domestic famous brand oil diffusion pump, Roots pump and mechanical pump;
3, aluminum plating and plating can be freely switched, which can realize automatic control of vacuum coating;
4, gold-plated silver and plated two sets of two workpiece racks, can be arbitrarily selected;
5, PLC + touch screen control, can achieve vacuum, coating automatic control, automatic recording of process parameters.
Technical Parameters:
