Device Description:

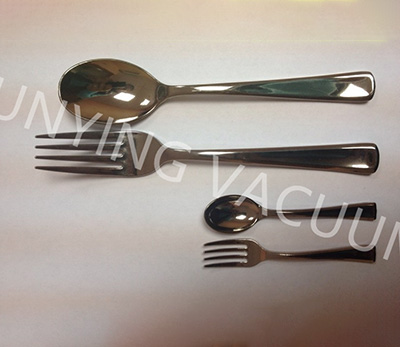

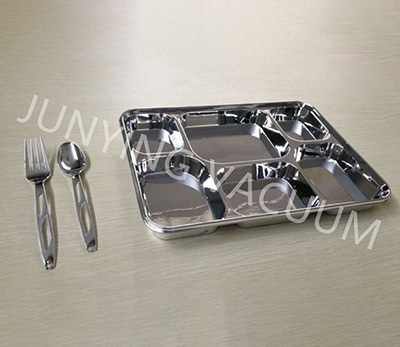

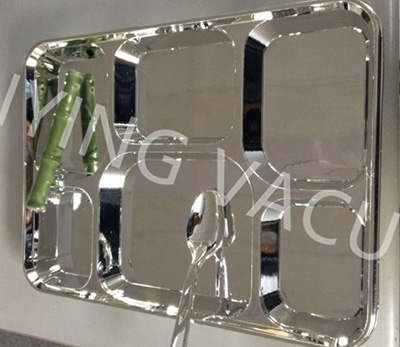

The equipment is a vertical double-door evaporation coating machine, which is suitable for coating metallized decorative film and functional film on the surface of plastic, ceramic, glass, resin, candle and metal materials...
Device Description:

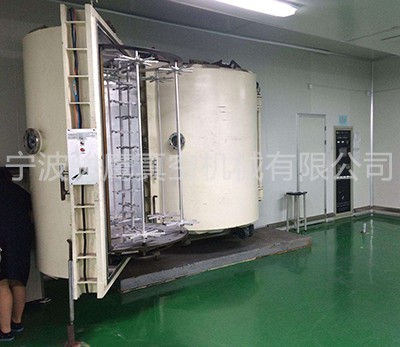

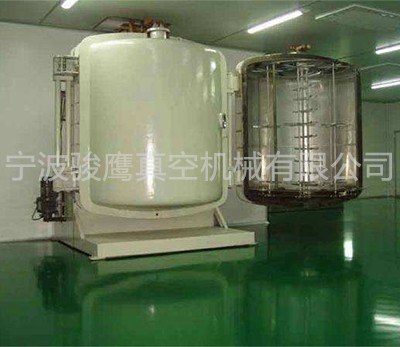

The equipment is a vertical double-door evaporation coating machine, which is suitable for coating metallized decorative film and functional film on the surface of plastic, ceramic, glass, resin, candle and metal materials. Adapted to the requirements of the modern coating industry, high efficiency, fully automatic, vacuum technology, evaporation coating and mechatronics technology, is the ideal coating equipment for the preparation of high-grade decorative film. The machine can be widely used in crafts, gifts, hardware appliances, decorations and electronics, machinery, light industry and other industries.
main feature:
The vertical double-opening door structure is equipped with two sets of evaporating electrodes. The clamping is convenient and quick, the maintenance and repair is simple, and the workpiece frame adopts a public rotation structure with gear rotation, and the rotation is flexible and reliable. The vacuum unit is equipped with advanced and reasonable, high pumping speed, high efficiency, energy saving and power saving. The electric control cabinet is equipped with imported electric (PLC). Most other electrical components are imported components. Evaporative coating is fully automatic control. The operating system is simple, reliable and beautiful. .
basic configuration:
1. Vacuum chamber vertical double door structure, made of 304 stainless steel or carbon steel, effective diameter of vacuum chamber from Φ1200mm-Φ2000mm;
2. The vacuum system consists of a mechanical pump, a rotary vane pump, a Roots pump and a high vacuum oil diffusion pump with a cold trap;
3. The coating system uses two sets of copper electrode resistance evaporation systems and power supplies;
4. The auxiliary pumping system uses a low temperature water vapor trap;
5, the electric control system sets the circuit overload, water cut, gas and sound and light alarm device;
6. Control system (touch screen + PLC), display detailed parameters in real time, fully control the entire production process, and automatically store process parameters.
| JYZ series vacuum evaporation magnetic control coating machine model and technical parameters | ||||||
| Performance | JYZ-500 | JYZ-800 | JYZ-1400 | JYZ-1600 | JYZ-1800 | JYZ-2000 |
| Coating chamber size | Ф500×H600mm | Ф800×H1000mm | Ф1400×H1800mm | Ф1600×H1800mm | Ф1800×H2000mm | Ф2000×H2000mm |
| Power type | Resistance evaporation power supply, DC magnetron power supply, high voltage glow power supply | |||||
| Vacuum chamber structure | Vertical single door, double door, rear suction system, horizontal front door structure, side, rear suction system | |||||
| Vacuum chamber material | High quality carbon steel, 304 stainless steel cavity | |||||
| Ultimate vacuum | 8.0×10-4Pa | |||||
| Pumping time (No load) |
Pumped from the atmosphere to 8.0×10-3Pa≤8 minutes | |||||
| Vacuum acquisition system | Diffusion pump or molecular pump + Roots pump + rotary vane pump + slide valve pump (specific models can be configured according to customer requirements) | |||||
| Coating method | Resistance, electron beam heating evaporation, DC magnetron sputtering coating | |||||
| Film type | Metal film, reaction film, compound film, multilayer film, semiconductor film, optical film | |||||
| Evaporation electrode power and column target model | Optional according to different coating processes and customer needs | |||||
| Evaporation power supply | 5KW/1 set | 10KW/1 set | 20KW/1 set | 30KW/1 set | 40KW/1 set | 50KW/1 set |
| Magnetron power supply | 8KW/1 set | 15KW/1 set | 30KW/1 set | 40KW/1 set | 50KW/1 set | 60KW/1 set |
| Workpiece turret Rotation mode |
Planetary public rotation, variable frequency speed control | |||||
| cooling method | The water circulation cooling method requires a cooling tower or an industrial chiller or a deep cooling system. (provided by the customer) | |||||
| control method | Manual/automatic integration, touch screen operation, PLC or computer control | |||||
| Total power of the whole machine | 15KW | 30KW | 45KW | 55KW | 70KW | 85KW |
| Alarm and protection | Alarms such as water shortage, over-current over-voltage, and open circuit such as pumps and targets are alarmed, and corresponding protective measures and electrical interlocking functions are implemented. | |||||
| Equipment footprint | W2m×L3m | W2.5m×L3.5m | W3m×L4m | W4m×L5m | W4.5m×L6m | W5m×L7m |
| Other technical parameters | Water pressure ≥0.2MPa, water temperature ≤25°C, air pressure 0.5-0.8MPa | |||||
| Other models | We can design a special coating machine for the products according to customer needs. | |||||
