Packing plastic forming machine (watering sheet)
Brand: Ningbo Jun Ying
Model: JY-1250L
Molding length: 2200 (mm) cutting material can be 3600mm, set any length and length!
Molding width: 1250 (mm)
Maximum forming depth: 100 (mm)
First, the main purpose:

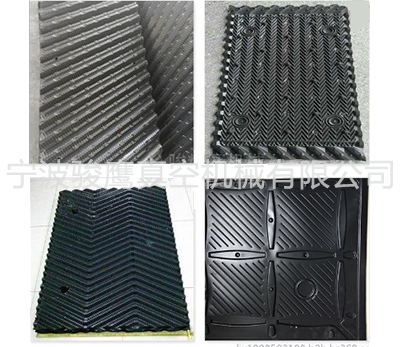

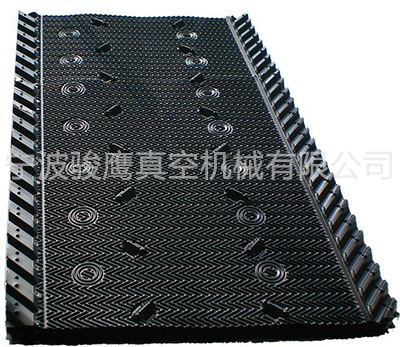

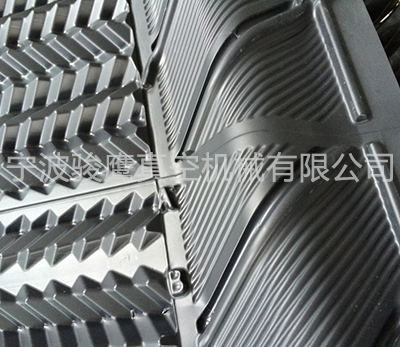

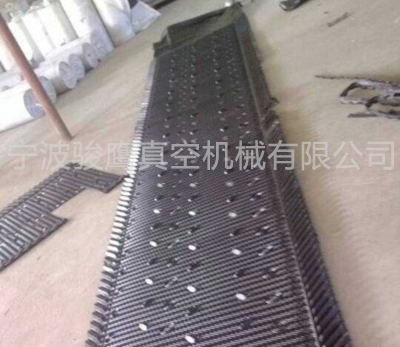

Applicable to large-scale specialized production of industrial cooling tower PVC filler sheets. High degree of automation, high production efficiency, good reliability and low failure rate
Second, the main features:
1. Control system: adopts microcomputer PLC control system, which can implement full-automatic control of the whole machine according to the process requirements; motor pull-tab, stepless adjustment of the length, speed and precision of the pull-tab by the inverter and touch screen;
2. Control part: using imported electrical appliances to make the whole machine run stably and reliably;
3. Heating system: adopts fully enclosed far-infrared ceramic heating brick heating system, six-stop switch, one-to-one control of heating bricks, effectively control molding temperature and save energy;
4. Mechanical part: special aluminum alloy track and rolling chain, beautiful appearance, no deformation of track, good cooling effect, small friction coefficient, no vibration.
5. Control mode: manual and automatic control, trial production and continuous production are all convenient and easy to operate.
6. Adopt automatic mold adjustment function to save sheet material.
